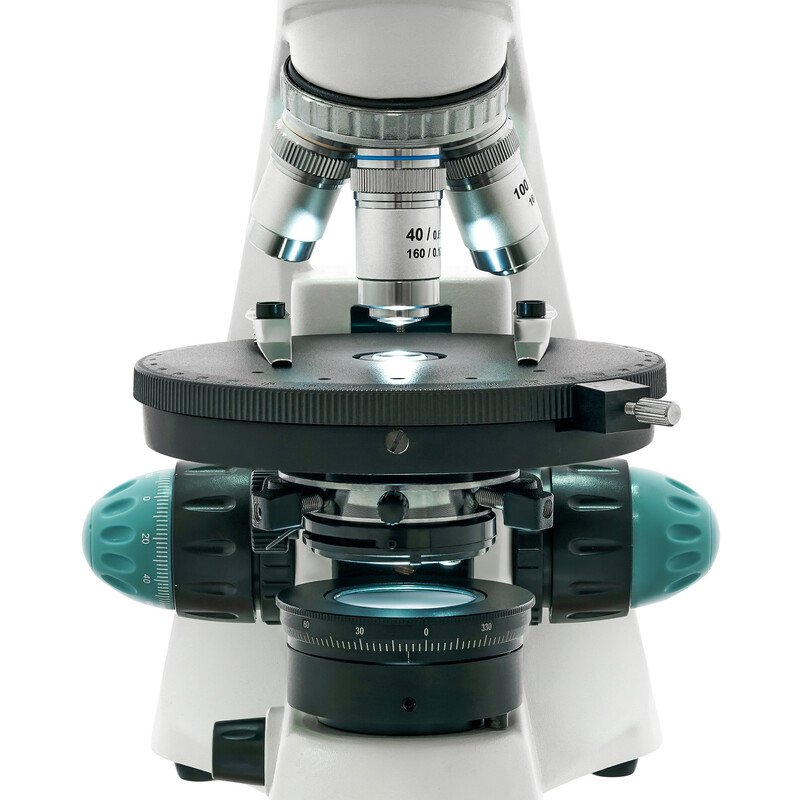

Levenhuk 500T POL Polarization Microscope Specs
| Brand | Levenhuk |
| Full Model Code / SKU | 500T POL (Professional Polarizing Trinocular Hub) |
| Country of Origin | USA / PRC |
| Microscope Type | Trinocular Polarization Laboratory Microscope System for Anisotropic Structural Materials Analysis |
| Optical System Type | Achromatic Light-Polarizing Strain-Free Corrected Optical Path Layout |
| Observation Tube Type | Trinocular Head Unit configured with internal beam-splitter routing and slider polarization analysis tracks |
| Tube Inclination & Rotation | 30° inclined viewing track, 360° rotatable head, adjustable individual interpupillary tracking sliders (55-75 mm); diopter equalization on left eye sleeve |
| Eyepiece / Field of Number | WF 10x / 18 mm (Includes specialized target crosshair reticle ocular module for precise geometric structural alignment) |
| Nosepiece Design | Quadruple revolving center-adjustable nosepiece system with crisp ball-bearing click stops |
| Objectives Classification | Achromatic Polarization-Corrected Strain-Free Industrial Objectives |
| Objectives Magnification Breakdown | 4x, 10x, 40x (Spring-loaded protection track), 60x (Spring-loaded configuration track) |
| Total Magnification Range | 40x, 100x, 400x, 600x fixed polarization magnification scaling logs |
| Focusing Type & Graduation | Coaxial coarse and fine adjustment block knobs working on dual rack and pinion tracking lines with 0.002 mm precision fine ticks |
| Stage Dimensions & Surface Coating | Rotatable circular polarization specimen platform tracking 360° full rotation loops with 1° angle graduation ticks and manual clamp locks |
| Stage Travel Range & Controls | 360° angular center-adjustable rotary stage track fitted with slide clips for manual polarization sample positioning |
| Condenser Type & Numerical Aperture | Abbe Condenser System 1.25 NA rating equipped with integrated iris diaphragm and built-in rotatable polarizer filter element |
| Illumination Transmitted Type | Base integrated high-power bright 3W LED light source tracking polarization interference color matrices cleanly |
| Illumination Epi-EPI/Reflected | None |
| Light Intensity Management | Electronic variable potentiometer rotary thumbwheel tracking base brightness output parameters |
| Camera Port / C-Mount Adapter Split | Top-mounted vertical trinocular photo tube port; requires standard C-mount adapter tracking camera integration logs |
| Contrast Methods Capability | Transmitted polarized light analysis tracking, cross-polarized anisotropic structural birefringence mapping, standard brightfield verification |
| Power Supply & Voltage Input | Standard power lines input accepting 110-220V AC via internal transformer circuit links |
| Physical Dimensions & Net Weight | Base layout 250 x 190 mm, total chassis height 430 mm, complete structural net weight approx. 4.8 kg |
| Standard Package Accessories Included | 500T POL polarizing chassis, four strain-free objectives, pair of WF 10x eyepieces (one with crosshair), slide analyzer block filter, rotatable polarizer module, dust cover, power cord, manual |
| Primary Application & Environment | Mineralogical crystal analysis labs, geological section tracking desks, polymer anisotropy evaluations, pharmaceutical chemical compound crystallographic research units |
