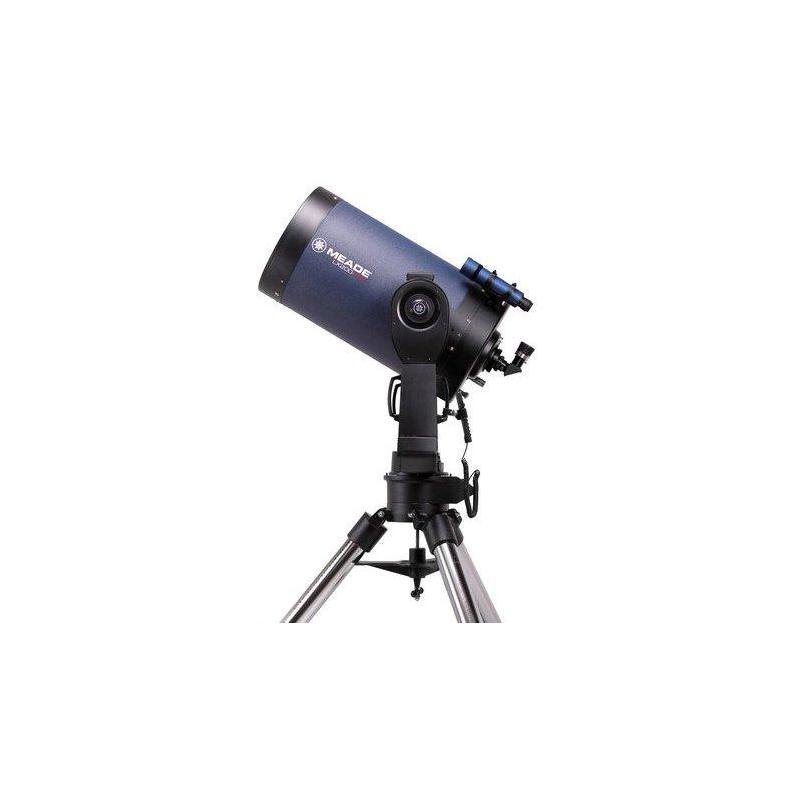

Meade ACF-SC 355/3550 14" UHTC LX200 GoTo

Meade ACF-SC 355/3550 14" UHTC LX200 GoTo - Image 2

Meade ACF-SC 355/3550 14″ UHTC LX200 GoTo

Name: Meade ACF-SC 355/3550 14" UHTC LX200 GoTo
Brand: Meade
SKU: MEADE-3553550-2
Price: 7620.00 USD
Availability: InStock

SKU:

MEADE-3553550-2

$7,620.00

In Stock

Add to wishlist

Compare

SKU: MEADE-3553550-2 Category: Telescopes Brand: Meade

Shipping within 2 days

All orders are processed and dispatched within 2 days

Specification
Reviews (0)

Meade ACF-SC 355/3550 14" UHTC LX200 GoTo Specs

Brand	Meade Instruments
Full Model Code	Meade LX200-ACF 14-inch f/10 Advanced Coma-Free GoTo Telescope System with UHTC (1410-60-03)
Country of Origin	Mexico
Optical Design	Advanced Coma-Free (ACF) Catadioptric Catseye Structure (Hyperbolic Secondary / Aspheric Corrector)
Aperture	355 mm (13.98 inches)
Focal Length	3556 mm
Focal Ratio	f/10
Optical Coatings	Ultra-High Transmission Coatings (UHTC) Matrix for Enhanced Light Throughput
Glass Material	Premium Pyrex Glass Primary Mirror Substrate with Water-White Glass Corrector Plate
Secondary Mirror Obstruction	107 mm
Secondary Mirror Obstruction by Diameter	30.1%
Secondary Mirror Obstruction by Area	9.08%
Resolving Power	0.32 Arcseconds (Dawes), 0.39 Arcseconds (Rayleigh)
Limiting Visual Magnitude	15.4
Highest Useful Magnification	700x
Lowest Useful Magnification	51x
Optical Tube Material	Powder-Coated Aluminum Cylindrical Shell with Heavy-Duty Die-Cast Rear Cell
Focuser Style & Mechanism	Internal Primary Mirror Focusing Mechanism with Zero-Shift Precision Slide Baffle Track and Included Microfocuser Attachment
Mirror Lock Mechanism	Yes (Equipped with Primary Mirror Manual Clamping Lock Bolt on Rear Cell)
Optical Tube Dimensions	400 mm x 760 mm
Optical Tube Weight	25.40 kg (56.00 lbs) - OTA Only / 56.70 kg (125.00 lbs) - Total Assembly minus Tripod
Mount Attachment Type	Heavy-Duty Detachable Dual-Fork Alt-Azimuth Electronics Drive Head Bracket Assembly
Finder Scope Specification	8x50 Achromatic Optical Finder Scope with Crosshair Layout and Dual-Screw Alignment Bracket
Included Accessories	14-inch f/10 ACF OTA, Dual-Fork GoTo Mount, AutoStar II Hand Controller, Giant Field Tripod, Series 4000 1.25-inch Ultra-Wide Diagonal, Super Plossl 26mm Eyepiece (137x), Zero Image-Shift Microfocuser, 8x50 Finder Scope, Smart Drive GPS Antenna System
Standard Warranty	1-Year Limited Warranty
Application	Mobile observatory tracking and research-grade high-magnification planetary observation, leveraging a high-payload giant field tripod and automated smart-drive GPS mapping to secure target alignment.
