Vision Engineering ECO2CE2 Boom Stand 12 Inch HD Monitor

Description

Position live macro video feeds directly over wide automotive assemblies using the Vision Engineering ECO2CE2 Boom Microscope. Built around a heavy-duty industrial double-arm boom stand, its horizontal extension rails glide across expansive workspaces with full 360-degree swiveling. A dedicated 12-inch Full HD display mounts directly to the stand frame, streaming uncompressed 1080p video at 60 fps over native HDMI. That means you get immediate live digital visualization without tethering to a computer or crowding your benchtop with a full-size desktop monitor.

Powered by a parfocal optical zoom engine and a 0.62x precision macro objective, the system maintains crisp focus throughout its magnification range while providing a generous working clearance for hand tools and soldering irons. Incident lighting is driven by an objective-mounted white LED ring light, controlled via push-button digital intensity switches on the camera body. Anchored by a 250 x 250 mm solid steel base block and a 450 mm vertical pillar, the entire 16.5 kg assembly operates on universal 100-240V AC power with zero computer lag.

Key Features of Vision Engineering ECO2CE2 Boom Microscope

An industrial digital macro video inspection station featuring an integrated 12-inch Full HD screen and a heavy double-arm boom stand. Combines a continuous optical zoom core with a 0.62x macro objective, 60 fps HDMI streaming, and an objective-mounted LED ring light.

• Continuous macro optical zoom engine with rapid focus retention across scaling shifts
• Integrated 12-inch Full HD display panel streams uncompressed 1080p live video at 60 fps
• Heavy-duty double-arm boom stand delivers long horizontal reach and 360-degree swiveling
• Precision 0.62x flat-field macro objective lens optimizes working clearance for hand tools
• High-intensity white LED ring light with digital push-button segment and brightness control
• Eyepiece-free monitor display eliminates neck strain and prevents cleanroom contamination
• Solid 250 x 250 mm footprint baseplate supports a rigid 450 mm vertical mounting post
• Universal 100-240V AC switching desktop power supply adapter module included

Double-Arm Boom Reach & Integrated 12-Inch Display

Inspecting large mechanical tooling and wide circuit panels requires broad horizontal travel that standard pillar stands cannot provide. The dual-arm boom glides smoothly on parallel guide tracks, letting operators sweep the camera head across wide component bays without vibrating out of focus. Mounting the 12-inch Full HD display right on the stand creates a self-contained inspection station, leaving the rest of your bench open for parts bins and test equipment.

Parfocal Macro Optics & Segmentable LED Ring Light

The 0.62x macro lens element delivers flat-field edge resolution across the entire sensor frame, ensuring solder joints and machined shoulders remain sharp without barrel distortion. The multi-point white LED ring light clips directly around the lens bezel, bathing reflective parts in uniform, daylight-balanced light. Technicians can use the digital push-button interface to adjust brightness levels instantly, suppressing glare on polished metals.

• Integrated 12-inch display eliminates external monitor clutter in tight workstations
• Double-arm boom design stops optical head twisting and sagging under heavy manipulation
• Direct HDMI streaming feeds live video without PC latency, software crashes, or OS lag

Vision Engineering One-Year System Warranty

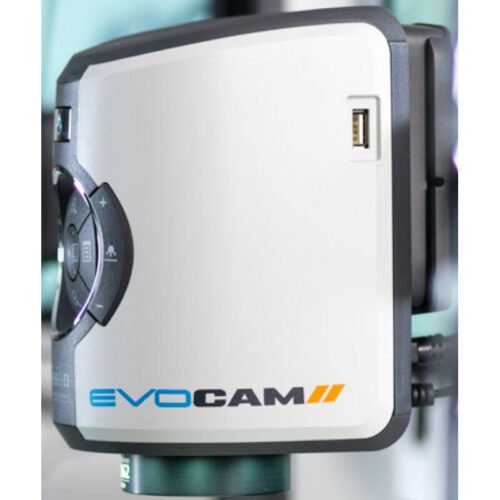

Vision Engineering backs the EVO Cam II ECO2CE2 with a comprehensive one-year factory warranty covering the camera sensor module, zoom optics, integrated 12-inch monitor, and boom stand hardware. The complete package contains the EVO Cam II unit, 12-inch Full HD monitor panel, 0.62x macro objective, LED ring light, heavy double-arm boom stand base, power brick, and HDMI cable.
