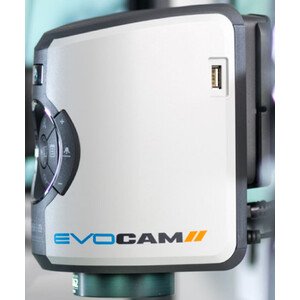

Vision Engineering EVO Cam II ECO2OEM OEM Digital Microscope System 24" Full HD Monitor LED Ringlight 4 Diopter Objective Specs
| Brand | Vision Engineering |
| Full Model Code / SKU | EVO Cam II ECO2OEM |
| Country of Origin | United Kingdom |
| Microscope Type | High-Performance Digital Macro-Microscope System with Direct Video Output and Complete OEM Production Rigging |
| Optical System Type | Precision continuous optical zoom tracking assembly with high-transmission lens coatings linked directly to an image sensor |
| Observation Tube Type | Pure digital video camera assembly feeding a standalone display screen without an internal analog ocular system |
| Tube Inclination & Rotation | Rigid straight vertical optical axis alignment mount optimized for standard integration into production machinery lines |
| Eyepiece / Field of Number | None (Replaced by direct digital video rendering onto an external high-resolution panel monitor layout) |
| Nosepiece Design | Threaded custom lens ring mount interface allowing direct secure coupling of professional primary objectives |
| Objectives Classification | Professional Precision Optical Macro Objectives featuring a flat-field distortion-free configuration profile |
| Objectives Magnification Breakdown | Includes an optimized 4-Diopter precision primary objective lens acting as the baseline optical scaling element |
| Total Magnification Range | Delivers a wide-range continuous zoom scale tracking up to 300x magnification when outputting to the 24-inch screen |
| Focusing Type & Graduation | Motorized internal focusing system driven via inline remote control keypads or integrated electronic interface software |
| Stage Dimensions & Surface Coating | Heavy industrial baseplate with modular mounting holes designed for direct assembly line bench installation |
| Stage Travel Range & Controls | Variable clearance height depending on mounting column; 4-diopter lens supports extended functional working clearance distances |
| Condenser Type & Numerical Aperture | None |
| Illumination Transmitted Type | None |
| Illumination Epi-EPI/Reflected | Integrated high-output segmentable white LED ring light matrix delivering bright uniform surface shadow control |
| Light Intensity Management | Digital step dimmer controller adjusting brightness tracks independently for specific target surface reflectivity |
| Camera Port / C-Mount Adapter Split | Integrated full-frame digital sensor module routing uncompressed video via native HDMI direct-to-monitor outputs |
| Contrast Methods Capability | High-speed Full HD digital brightfield video observation, surface topography analysis, photo documentation tracking |
| Power Supply & Voltage Input | Multi-voltage universal switching external power adapter module running on 100-240V AC inputs |
| Physical Dimensions & Net Weight | Display panel size exactly 24.0 inches diagonal, video resolution 1080p Full HD at 60fps, total system mass exactly 9.8 kg |
| Standard Package Accessories Included | EVO Cam II module, 4-Diopter objective lens, 24" Full HD monitor panel, HDMI connectivity cable array, remote control pad |
| Primary Application & Environment | In-line manufacturing checking stations, bulk electronics verification cells, industrial micro-assembly logging hubs |
Additional information
| brands | Vision |
|---|
