Description

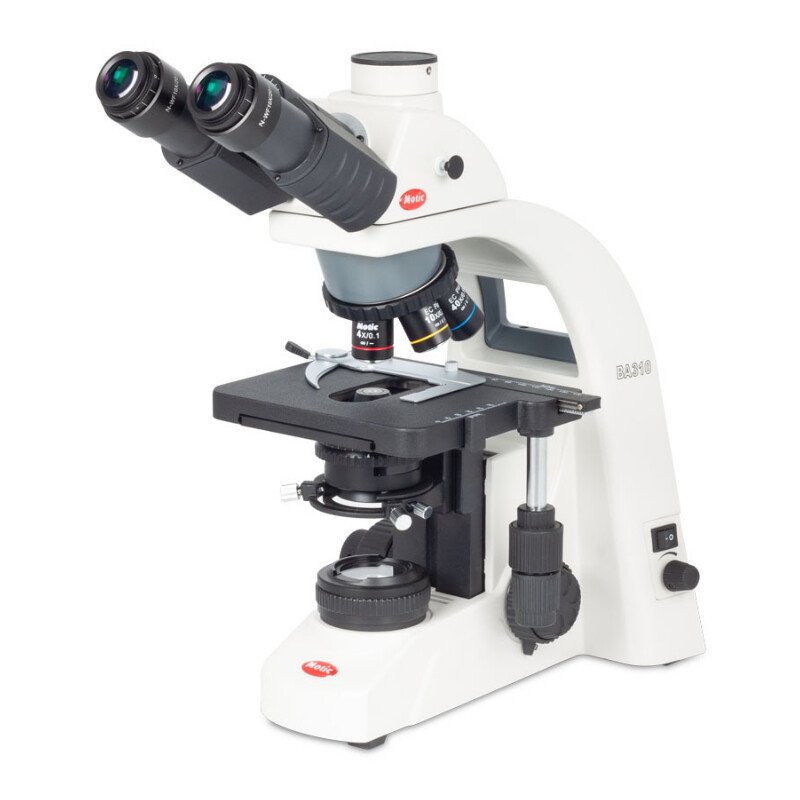

Document botanical cross-sections and cytology slides without oil mess using the Motic BA310 400x Trinocular Microscope. It gives you 40x, 100x, and 400x dry magnification powered by three CCIS Plan Achromatic objectives: 4x/0.10, 10x/0.25, and spring-loaded 40x/0.65. By omitting an oil-immersion 100x lens, this setup keeps stage plates, slide clips, and student fingers completely free of sticky residues. The Siedentopf trinocular head incorporates a fixed 20:80 optical beam splitter on its vertical photo port, sending 80% of light to an attached digital camera while maintaining active viewing through widefield N-WF 10x/20 mm eyepieces.
Transmitted illumination is supplied by an energy-efficient 3W LED cool white module that preserves daylight color balance across all brightness levels without heating live mounts. A focusable and centerable Abbe 1.25 NA condenser features an integrated iris diaphragm for fine contrast tuning. The oversized 175 x 140 mm hard-coated mechanical stage provides 76 x 50 mm of coaxial XY travel, while coaxial focus knobs operate on internal brass gears with 2-micron graduations across an 8.6 kg cast chassis running on universal 100-240V AC power.
Key Features of Motic BA310 400x Trinocular Microscope
An educational and clinical trinocular compound microscope featuring CCIS Plan Achromatic optics and an all-dry 400x magnification ceiling. Combines three dry Plan objectives with a 20:80 camera port, 3W LED lighting, a centerable Abbe 1.25 NA condenser, and a 175 x 140 mm hard-coated stage.
- CCIS Plan Achromatic infinity objectives: 4x, 10x, and spring-loaded 40x (no oil required)
- Dedicated vertical photo port with fixed 20:80 optical split for simultaneous camera capture
- Transmitted 3W LED cool white illumination module with continuous rotary dimmer
- Reversed quintuple nosepiece revolving on smooth ball bearings with positive click stops
- Focusable and centerable Abbe 1.25 NA condenser equipped with an iris diaphragm
- Oversized 175 x 140 mm scratch-resistant mechanical stage with 76 x 50 mm coaxial XY drive
- Coaxial coarse and fine focus drive working on precision brass gears with 2-micron steps
- Solid 8.6 kg cast-metal chassis provides complete vibration-free benchtop stability
CCIS Plan Achromatic Optics & Oil-Free Workflow
Capping magnification at an all-dry 400x ceiling prevents sticky oil messes on shared classroom equipment while delivering the resolving power needed to inspect onion epidermis and blood smears. CCIS Plan Achromatic objectives eliminate spherical field curvature across the 20 mm field of view, keeping cellular boundaries sharp right up to the visual perimeter. Spring-loaded mounts on the 40x lens protect slide cover slips from accidental mechanical strikes.
Trinocular Image Capture & Coaxial Stage Mechanics
The dedicated vertical photo port routes clean optical data to external digital C-mount cameras, letting instructors project real-time microscopic video to classroom interactive boards while students observe through the eyepieces. The oversized mechanical stage provides smooth 76 x 50 mm coordinate translation via right-hand drop-down stalks, while the 2-micron fine-focus wheel allows precise focal plane isolation without gear backlash.
- Vertical photo port routes clean optical data to external digital video capture systems
- Fixed 20:80 beam splitter allows simultaneous eyepiece observation and digital video recording
- Hard-coated mechanical stage resists scratching and chemical staining from daily slide use
Motic Five-Year Biological Microscope Warranty
Motic covers the BA310 Trinocular 400x with a comprehensive five-year factory warranty covering optical elements, internal gear tracks, and stand castings, backed by two years on LED circuitry. The complete package contains the BA310 trinocular core chassis frame, three dry CCIS Plan objectives, two N-WF 10x/20 mm eyepieces, photo port cap, quintuple port socket caps, universal power cord, vinyl dust cover, and manual.
Motic BA310 Trinocular Microscope Infinity Plan Achromatic 40x-400x LED Without 100x Objective Specs
| Brand | Motic |
| Full Model Code / SKU | BA310 Trinocular LED 400x Dry Configuration (Camera-Ready Educational and Cytology Setup) |
| Country of Origin | Germany / China |
| Microscope Type | Trinocular Biological Compound Microscope with Phototube assembly optimized for high-dry screening and micro-photography without oil media |
| Optical System Type | CCIS Color Corrected Infinity Optical System providing expanded flat field geometries and maximum color fidelity |
| Observation Tube Type | Trinocular Head Unit, Siedentopf type with top vertical imaging exit port mapping internal light beam splitter blocks (20:80 split ratio) |
| Tube Inclination & Rotation | 30° inclined viewing posture for physical comfort, 360° rotating head section, 55-75 mm interpupillary distance tracking adjustability |
| Eyepiece / Field of Number | N-WF 10x / 20 mm (High-eyepoint wide field ocular modules with independent diopter adjustment rings on both tubes) |
| Nosepiece Design | Reversed quintuple revolving nosepiece block tracking automated mechanical positional click-stop alignments |
| Objectives Classification | CCIS Plan Achromatic Infinity Optical Lens Series engineered for field flatness across the field of view |
| Objectives Magnification Breakdown | Plan Achromatic 4x, Plan Achromatic 10x, Plan Achromatic 40x (Spring-loaded tip) |
| Total Magnification Range | 40x, 100x, 400x core high-performance dry magnification configuration parameters (No oil media needed) |
| Focusing Type & Graduation | Coaxial coarse and fine adjustment tracking assemblies operating with precise internal brass tension-tuning controls; fine graduation at 0.002 mm |
| Stage Dimensions & Surface Coating | Oversized mechanical plain stage measuring exactly 175 x 140 mm treated with hard-coat scratch-resistant surface plating and non-protruding sample holder guide rails |
| Stage Travel Range & Controls | Right-hand low-position coaxial translation controls mapping precisely 76 mm on the X-axis and 50 mm on the Y-axis lines |
| Condenser Type & Numerical Aperture | Focusable and centerable Abbe condenser unit with an adjustable numeric aperture value of 1.25 and integrated iris diaphragm slots |
| Illumination Transmitted Type | Base integrated 3W LED transmissive cool white illumination array with solid color temperature stability (Interchangeable with 6V/30V Halogen module) |
| Illumination Epi-EPI/Reflected | None |
| Light Intensity Management | Continuous variable electronic analog rotary potentiometer layout integrated with local brightness tracking logs |
| Camera Port / C-Mount Adapter Split | Top vertical straight photo exit tube configured for separate c-mount adapter sleeves to mount external digital imaging sensors |
| Contrast Methods Capability | Transmitted sample brightfield analysis, simultaneous digital image capture, dry specimen cross-section screening, routine slide validation tracks |
| Power Supply & Voltage Input | Internal universal switching auto-voltage power supply transformer unit accepting 100-240V AC electrical currents |
| Physical Dimensions & Net Weight | Chassis depth 400 mm, profile width 220 mm, complete assembly height 415 mm, structure net weight approx. 8.6 kg |
| Standard Package Accessories Included | BA310 trinocular core chassis frame, dry CCIS Plan objectives (4x, 10x, 40x), two N-WF 10x/20mm eyepieces, top photo port cover cap, quintuple port socket caps, vinyl dust cover, power line cord |
| Primary Application & Environment | University classroom training cells, general life science digital presentation desks, botanical tissue recording benches, student micro photography stations |
