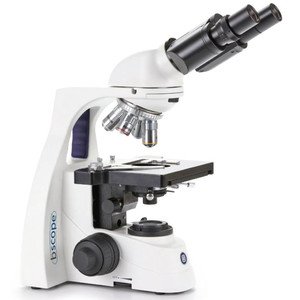

Euromex BS1152-PLi Infinity Binocular

Description

Evaluate clinical hematology smears and stained histological sections using the Euromex BS.1152-PLi Infinity Binocular Microscope routine laboratory platform. Powered by an infinity-corrected IOS optical system, it delivers 40x, 100x, 400x, and 1000x magnification via four Plan PLi IOS objectives: 4x/0.10, 10x/0.25, spring-loaded 40x/0.65, and spring-loaded 100x/1.25 oil immersion. Superior field flatness extends across the 20 mm field of view, keeping cellular structures sharp from center to margin without peripheral blur.

Transmitted light comes from an energy-efficient 3W NeoLED base lamp focused through a height-adjustable Abbe 1.25 NA condenser equipped with an iris diaphragm and magnification markings. Built around a 5.6 kg metal frame, the instrument houses an internal rechargeable battery pack for cordless operation and a 152 x 131 mm scratch-resistant mechanical stage (75 x 36 mm XY travel). Coaxial coarse and fine focus knobs feature calibrated 1.8-micron fine graduations, friction drag regulation, and an adjustable safety rack stop to prevent cover slip damage.

Key Features of Euromex BS.1152-PLi Infinity Binocular Microscope

An upright binocular biological microscope engineered for multi-user clinical pathology labs, hematology analysis, and medical university training. Combines four Plan infinity objectives with cordless rechargeable battery power, an Abbe 1.25 NA condenser, and 3W NeoLED illumination.

• Plan PLi IOS infinity objectives: 4x, 10x, spring-loaded 40x, and 100x oil immersion
• Reversed quintuple nosepiece revolving on smooth ball bearings for quick objective swaps
• Transmitted 3W NeoLED illumination with continuous rotary dimmer control on base
• Cordless operation via internal rechargeable battery pack with universal 100-240V supply
• Binocular head inclined at 30 degrees with 48 mm to 76 mm interpupillary adjustment
• Double-layer 152 x 131 mm scratch-resistant mechanical stage with 75 x 36 mm XY travel
• Coaxial focus mechanics with 1.8-micron graduations and adjustable travel rack stop
• Widefield HWF 10x/20 mm eyepieces deliver clear, flat-field edge resolution

Infinity Plan PLi Optics & True Color Rendering

Color-corrected Plan PLi objectives eliminate spherical curvature and edge softness, making cell differential counting and biopsy evaluations smooth and reliable. The 3W NeoLED light engine produces daylight-balanced white light that renders eosin and hematoxylin stains with authentic saturation without thermal distortion. The spring-loaded mounts on the 40x and 100x objectives cushion accidental contact, protecting both front glass elements and delicate specimen preparations.

Cordless Mobility & Coaxial Stage Mechanics

Tangled power cables create clutter on crowded diagnostic benches. The internal rechargeable battery pack keeps the microscope running all day on a single charge, allowing seamless transport between laboratory prep benches and student workstations. The coaxial mechanical stage controls sit low to the table surface, giving technicians smooth two-axis slide tracking across a 75 x 36 mm area with resting forearms.

• Internal rechargeable batteries eliminate floor trip hazards in shared laboratory rooms
• Low-position coaxial XY controls reduce wrist fatigue during high-volume sample rounds
• Compact 5.6 kg cast-metal chassis provides complete vibration-free benchtop stability

Euromex Five-Year Mechanical & Optical Warranty

Euromex backs the bScope BS.1152-PLi with a comprehensive five-year factory warranty covering optical elements, internal prism alignments, and mechanical stage drives, backed by two years on LED circuitry and battery cells. The complete factory package contains the Euromex BS.1152-PLi Infinity Binocular Microscope, four Plan PLi IOS objectives, immersion oil bottle, white filter cap, universal power cord, dust shield cover, and instruction manual.
