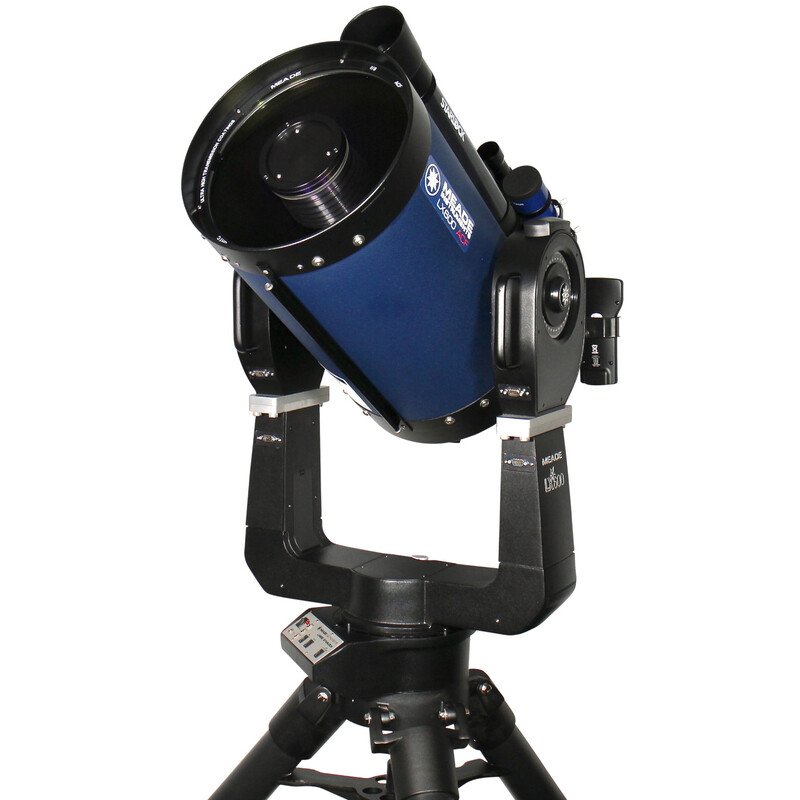

Meade ACF-SC 304/2438 Starlock LX600 without Tripod Specs
| Brand | Meade Instruments |
| Full Model Code | Meade LX600-ACF 12-inch f/8 Advanced Coma-Free Telescope System with StarLock - No Tripod (1208-60-01NT) |
| Country of Origin | Mexico |
| Optical Design | Advanced Coma-Free (ACF) Catadioptric Catseye Structure (Hyperbolic Secondary / Aspheric Corrector) |
| Aperture | 304 mm (11.97 inches) |
| Focal Length | 2438 mm |
| Focal Ratio | f/8 |
| Optical Coatings | Ultra-High Transmission Coatings (UHTC) Matrix for Enhanced Light Throughput |
| Glass Material | Premium Pyrex Glass Primary Mirror Substrate with Water-White Glass Corrector Plate |
| Secondary Mirror Obstruction | 104 mm |
| Secondary Mirror Obstruction by Diameter | 34.2% |
| Secondary Mirror Obstruction by Area | 11.7% |
| Resolving Power | 0.38 Arcseconds (Dawes), 0.45 Arcseconds (Rayleigh) |
| Limiting Visual Magnitude | 15.0 |
| Highest Useful Magnification | 600x |
| Lowest Useful Magnification | 43x |
| Optical Tube Material | Powder-Coated Aluminum Cylindrical Shell with Heavy-Duty Die-Cast Rear Cell |
| Focuser Style & Mechanism | Internal Primary Mirror Focusing Mechanism with Zero-Shift Precision Slide Baffle Track and Dual-Speed Crayford Core |
| Mirror Lock Mechanism | Yes (Equipped with Primary Mirror Manual Clamping Lock Bolt on Rear Cell) |
| Optical Tube Dimensions | 350 mm x 640 mm |
| Optical Tube Weight | 44.50 kg (98.11 lbs) - Combined Tube and Fork Drive Base Assembly |
| Mount Attachment Type | Heavy-Duty Dual-Fork Alt-Azimuth Drive Head Block Unit Base Plate for Permanent Pier Attachment |
| Finder Scope Specification | 8x50 Achromatic Optical Finder Scope with Crosshair Layout and Dual-Screw Alignment Bracket |
| Included Accessories | 12-inch f/8 ACF OTA, Detachable Dual-Fork GoTo Mount, StarLock Integrated Auto-Guider System, AutoStar II Hand Controller, 1.25-inch Diagonal Mirror, Super Plossl 26mm Eyepiece (94x) |
| Standard Warranty | 1-Year Limited Warranty |
| Application | Permanent observatory pier deployment and automated tracking installations, utilizing the native StarLock optical core to manage fine-grained guide adjustments while avoiding redundant tripod floor setups. |
Reviews
There are no reviews yet.
