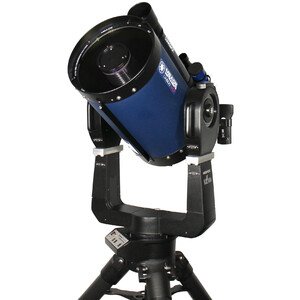

Meade ACF-SC 304/2438 UHTC Starlock LX600 Specs
| Brand | Meade Instruments |
| Full Model Code | Meade LX600-ACF 12-inch f/8 Advanced Coma-Free Telescope System with StarLock (1208-60-01) |
| Country of Origin | Mexico |
| Optical Design | Advanced Coma-Free (ACF) Catadioptric Catseye Structure (Hyperbolic Secondary / Aspheric Corrector) |
| Aperture | 304 mm (11.97 inches) |
| Focal Length | 2438 mm |
| Focal Ratio | f/8 |
| Optical Coatings | Ultra-High Transmission Coatings (UHTC) Matrix for Enhanced Light Throughput |
| Glass Material | Premium Pyrex Glass Primary Mirror Substrate with Water-White Glass Corrector Plate |
| Secondary Mirror Obstruction | 104 mm |
| Secondary Mirror Obstruction by Diameter | 34.2% |
| Secondary Mirror Obstruction by Area | 11.7% |
| Resolving Power | 0.38 Arcseconds (Dawes), 0.45 Arcseconds (Rayleigh) |
| Limiting Visual Magnitude | 15.0 |
| Highest Useful Magnification | 600x |
| Lowest Useful Magnification | 43x |
| Optical Tube Material | Powder-Coated Aluminum Cylindrical Shell with Heavy-Duty Die-Cast Rear Cell |
| Focuser Style & Mechanism | Internal Primary Mirror Focusing Mechanism with Zero-Shift Precision Slide Baffle Track and Dual-Speed Crayford Core |
| Mirror Lock Mechanism | Yes (Equipped with Primary Mirror Manual Clamping Lock Bolt on Rear Cell) |
| Optical Tube Dimensions | 350 mm x 640 mm |
| Optical Tube Weight | 16.20 kg (35.71 lbs) - OTA Only / 44.50 kg (98.11 lbs) - With Fork Mount |
| Mount Attachment Type | Heavy-Duty Detachable Dual-Fork Alt-Azimuth Drive Head Block Unit Assembly |
| Finder Scope Specification | 8x50 Achromatic Optical Finder Scope with Crosshair Layout and Dual-Screw Alignment Bracket |
| Included Accessories | 12-inch f/8 ACF OTA, Detachable Dual-Fork GoTo Mount, StarLock Integrated Auto-Guider System, AutoStar II Hand Controller, Heavy-Duty Giant Field Tripod, 1.25-inch Diagonal Mirror, Super Plossl 26mm Eyepiece (94x) |
| Standard Warranty | 1-Year Limited Warranty |
| Application | Continuous full-time autoguided astrophotography and automated deep-sky coordination logging, deploying an integrated secondary dual-camera guiding assembly to execute real-time tracking corrections without external computer hardware profiles. |
