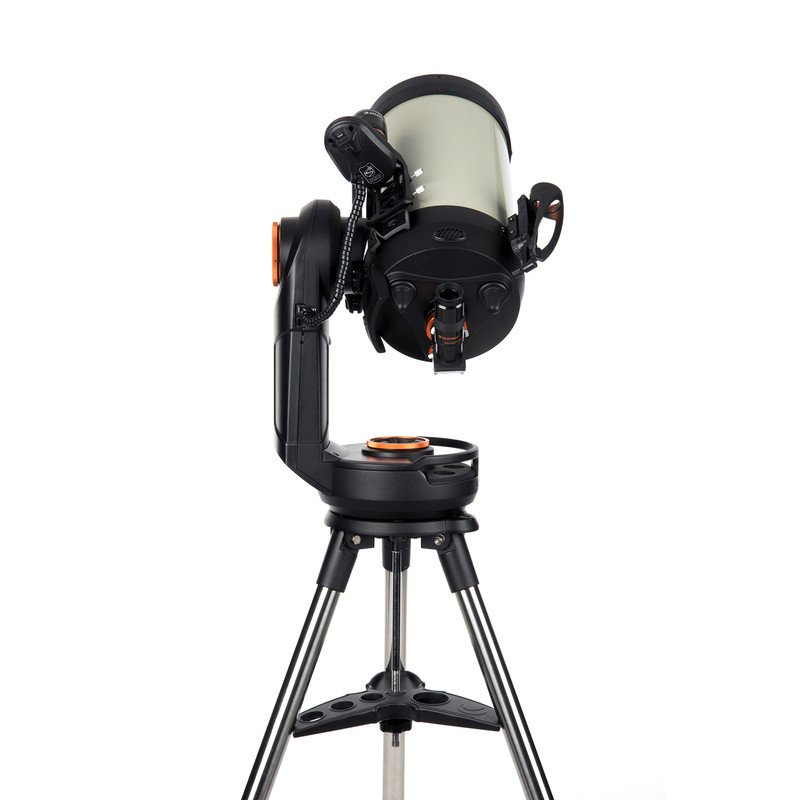

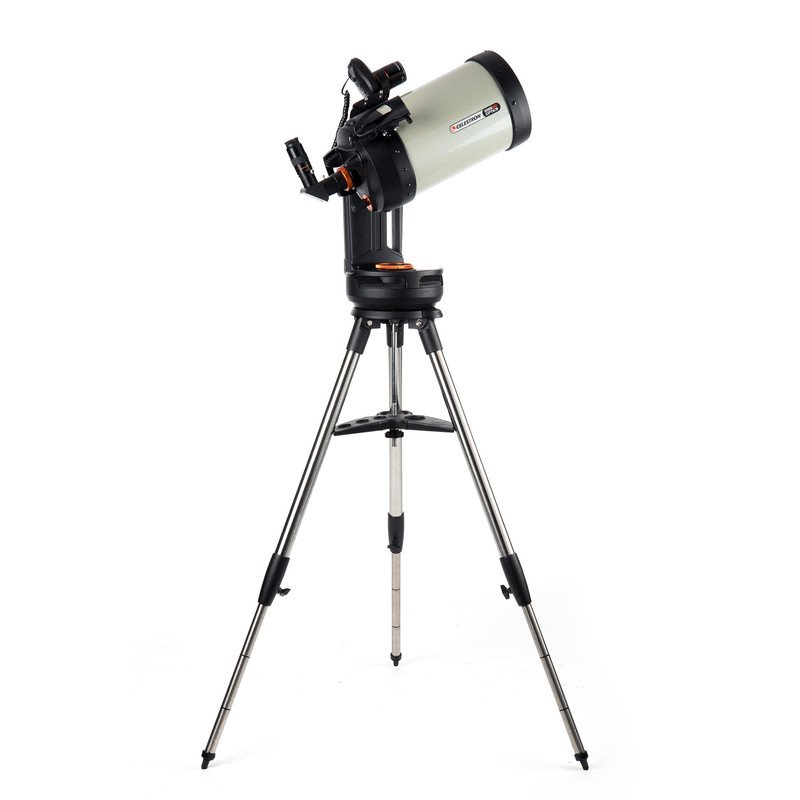

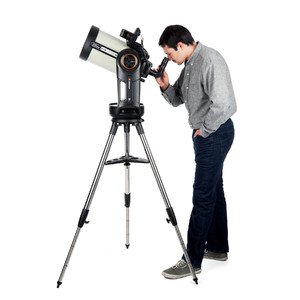

Celestron SC 203/2032 EdgeHD NexStar Evolution 8 Specs
| Brand | Celestron |
| Full Model Code | Celestron NexStar Evolution 8 HD with StarSense AutoAlign (12091) |
| Country of Origin | United States / China |
| Optical Design | EdgeHD (Aplanatic Schmidt-Cassegrain with Integrated Doublet Field Flattener) |
| Aperture | 203.2 mm (8.0 inches) |
| Focal Length | 2032 mm |
| Focal Ratio | f/10 |
| Optical Coatings | Premium StarBright XLT High-Transmission Coatings |
| Secondary Mirror Obstruction | 68.58 mm |
| Secondary Mirror Obstruction by Diameter | 34% |
| Secondary Mirror Obstruction by Area | 11.4% |
| Resolving Power | 0.57 Arcseconds (Dawes), 0.69 Arcseconds (Rayleigh) |
| Limiting Visual Magnitude | 14.0 |
| Highest Useful Magnification | 480x |
| Lowest Useful Magnification | 29x |
| Optical Tube Material | Aluminum |
| Focuser Style & Mechanism | Internal Primary Mirror Focus Assembly with Two Mirror Support Clutches and Tube Air Vents |
| Mirror Lock Mechanism | Yes (Dual Tension Knobs locking the primary mirror) |
| Optical Tube Dimensions | 238 mm x 432 mm |
| Optical Tube Weight | 6.35 kg (14.0 lbs) - Tube Only |
| Mount Attachment Type | Computerized Alt-Azimuth Single-Fork Arm Mount with Integrated Lithium-Iron Phosphate (LiFePO4) Battery Pack |
| Finder Scope Specification | StarSense AutoAlign Camera Module (Enables Automated Sky Plate Solving Alignment) |
| Included Accessories | 40mm Plossl Eyepiece (51x), 12.5mm Omni Plossl Eyepiece (163x), 90-Degree Star Diagonal (1.25-inch), StarSense AutoAlign Camera Head, StarSense Hand Controller, Evolution Single Fork Mount with Internal WiFi, Stainless Steel Tripod with Accessory Tray, AC Charger Adapter |
| Power Requirements | Internal Rechargeable LiFePO4 Battery Pack or Included 12V DC Wall Charger |
| Standard Warranty | 2-Year Limited Warranty |
| Application | Autonomous smart device targeted tracking and flat-field visual mapping, using an intelligent camera sensor to align an 8-inch aplanatic optics core over local streaming networks without manual alignment coordinates. |
