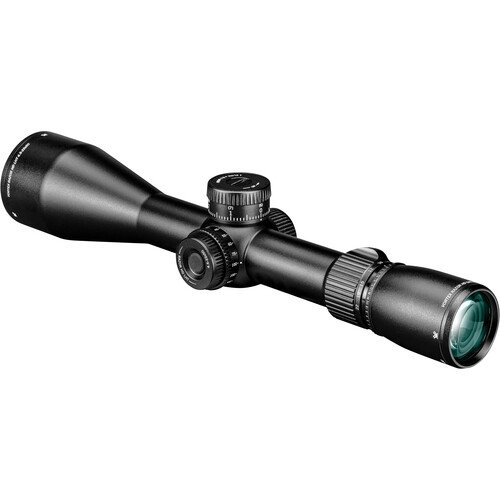

Vortex Razor HD LHT 4.5-22×50 FFP Riflescope (XLR-2 MRAD Illuminated Reticle)

Description

Track distant silhouettes through heavy mirage using Vortex Razor HD LHT Riflescope optics in 4.5-22x50mm featuring an illuminated XLR-2 MRAD reticle. Presenting first focal plane scaling, 0.1 MRAD clicks, and 22.5 MRAD travel, it yields mountain hunting precision, though 50mm objective dimensions require medium-height mounting rings.

Machined from 6061-T6 aircraft aluminum, the 30mm monotube protects erector cells from heavy mechanical shock while weighing just 21.7 ounces. High-density extra-low dispersion optical glass provides high contrast through the 50mm objective lens. Completely waterproof to IPX7 standards and dry argon purged, this optic measures 13.3 inches long with a black anodized finish.

Key Features of Vortex Razor HD LHT

Buy Vortex Razor HD LHT riflescopes to outfit mountain hunting rifles with an ultra-bright, lightweight first focal plane platform. This versatile scope provides rapid low-light target identification and illuminated milliradian holdovers through fading dusk conditions.

• 4.5-22x magnification zoom ratio allows timber scouting and precise long-range target placement
• 50mm objective lens aperture delivers bright images in deep twilight conditions
• 30mm aircraft aluminum main tube provides 22.5 MRAD total internal elevation adjustment
• XLR-2 MRAD first focal plane reticle features fine stadia lines and illuminated center crosshair
• Reinforced Vortex Razor erector leaf springs prevent zero migration under heavy recoil
• Broadband multi-coatings maximize light throughput and suppress surface glare
• Locking elevation turret prevents accidental rotation during transport and includes RevStop zero stop
• Push-button illumination control integrated into the side focus parallax dial

Mechanical Erector Load Calibration

Tested against magnum hunting recoil, internal erector assemblies survive 1000G shock pulses from .300 Win Mag cartridges without point-of-impact shift. Internal lead screws deliver 0.1 MRAD click adjustments across 22.5 MRAD travel within 1 percent tracking accuracy. Dry argon gas eliminates internal fogging between -20°F and 140°F.

Mounting Span Receiver Dimensions

The 30mm main tube provides 6.0 inches of ring mounting space, fitting short and long bolt-action receivers. Tighten 30mm scope rings to 15 to 18 in-lbs and base clamp bolts to 35 in-lbs. The 4.0-inch eye relief prevents scope contact under heavy recoil cycles.

Stand Hunting Maintenance Rules

The zoom ring operates with balanced damping, preventing inadvertent power movement when pushing through dense brush. This hunting-focused optic with capped windage turrets is not designed for fast multi-dial tactical shooting matches where exposed turrets are preferred.

• Examine scope ring screw torque with a driver every 200 rounds
• Clean external optical glass with lens tissue and fluid every 500 rounds
• Inspect battery compartment O-rings and replace CR2032 cells every 12 months

VIP Lifetime Warranty Manifest

Vortex backs the optic with an unconditional VIP lifetime warranty on optical elements, mechanics, and electronics. Inside the shipment rests the riflescope, sunshade, CR2032 coin battery, tethered lens covers, lens cloth, and factory documentation.
