Euromex DX1153-APLi Fluarex Infinity Fluorescence Optics

Description

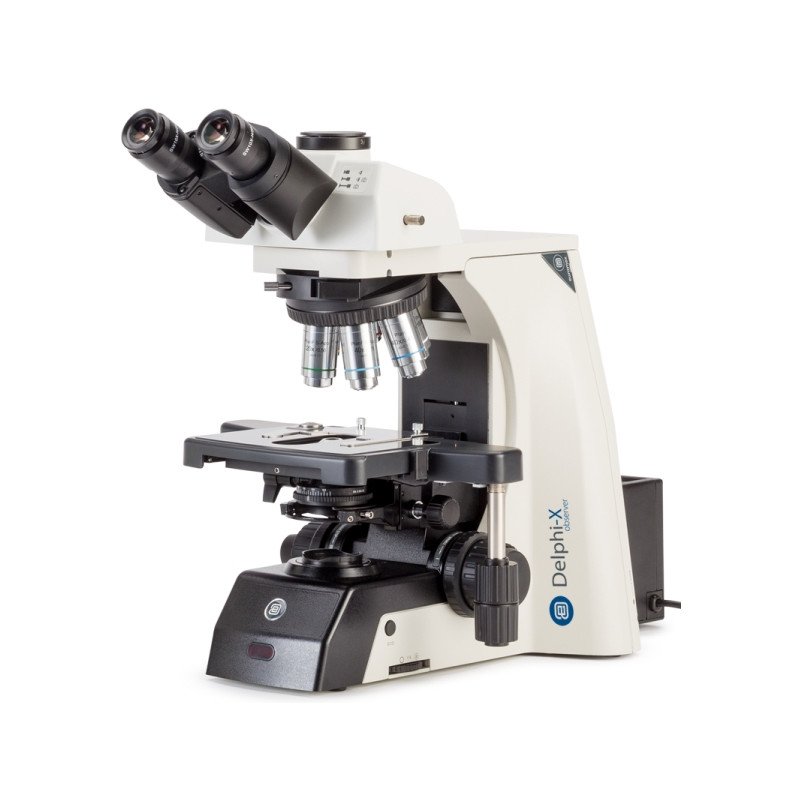

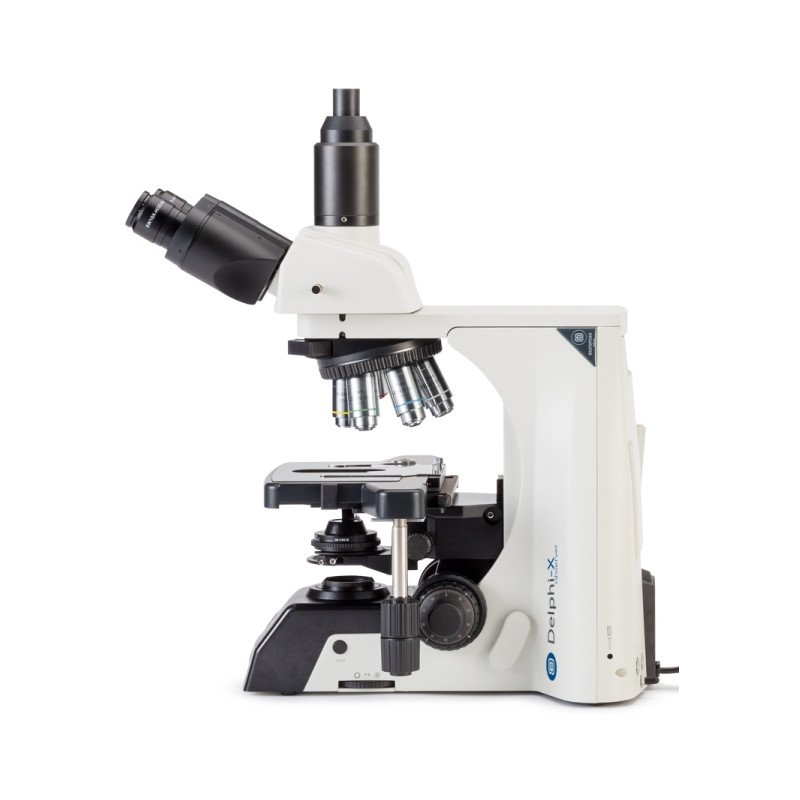

Relieve physical neck fatigue while conducting quantitative cellular research using the Euromex Delphi-X DX.1153-APLi Trinocular Microscope. Its ergonomic trinocular head tilts continuously from 0 degrees (flat horizontal) up to 30 degrees upward, letting researchers align the oculars to their seated posture without adjusting chair height. Driven by an infinity-corrected EIS optical system with a 60mm tube lens, it delivers 40x, 100x, 200x, 400x, and 1000x magnification via five Plan Semi-Apochromatic Fluarex EIS objectives: 4x/0.13, 10x/0.30, 20x/0.45, spring-loaded S40x/0.75, and spring-loaded S100x/1.30 oil immersion.

Transmitted illumination is supplied by an adjustable 3W NeoLED base lamp equipped with an internal fly-eye lens matrix for uniform light distribution, backed by an intelligent digital memory circuit that recalls preset brightness levels per objective. Super widefield SWF 10x/25 mm eyepieces deliver an expansive 25 mm field of view across a 10.2 kg cast-metal frame measuring 242 x 411 x 485 mm. The 190 x 152 mm scratch-resistant stage features low-drop coaxial controls (78 x 32 mm XY travel), an Abbe swing-out condenser (NA 0.90/1.25), and coaxial focus knobs with 1-micron fine graduations across 24 mm of travel.

Key Features of Euromex Delphi-X DX.1153-APLi Trinocular Microscope

A flagship upright research biological microscope featuring an ergonomic 0-to-30 degree tilting trinocular head and an EIS 60mm tube lens system. Combines five Plan Semi-Apochromatic Fluarex objectives with super-wide 25 mm eyepieces, fly-eye LED illumination, and 1-micron fine focus.

• Ergonomic trinocular observation head tilts continuously from 0 degrees up to 30 degrees
• Infinity-corrected EIS optical train with 60mm tube lens and super-wide SWF 10x/25 mm eyepieces
• Plan Semi-Apo Fluarex EIS objectives: 4x, 10x, 20x, spring-loaded 40x, and 100x oil immersion
• Reversed sextuple nosepiece revolving smoothly on high-precision ball bearings
• Height-adjustable Abbe condenser (NA 0.90/1.25) with swing-out front lens and iris diaphragm
• Transmitted 3W NeoLED illumination with fly-eye lens matrix and digital brightness memory
• Oversized 190 x 152 mm scratch-resistant stage with 78 x 32 mm low-drop coaxial XY drive
• Precision coaxial focus drive with 1-micrometer fine division markings across 24 mm travel

Delphi-X EIS Optics & Fly-Eye NeoLED Light

The 60mm EIS tube lens corrects chromatic aberrations and field curvature across the wide 25 mm image circle, keeping stained tissue margins sharp from center to perimeter. Standard LEDs often create central glare hot spots, but the internal fly-eye lens array diffuses photons evenly through the sub-stage condenser. This uniform illumination maximizes contrast along thin cell membranes, while the swing-out top lens ensures even illumination across large 4x scanning fields.

0-to-30 Degree Tilting Head & 1-Micron Focus Precision

Fixed-angle microscope tubes force technicians to slouch over long screening sessions. The tilting head adjusts smoothly within a 30-degree arc, letting you sit upright while scanning biopsy slides. Having six objective ports on a reversed turret gives laboratories room to add extra specialized lenses without swapping hardware. The coaxial fine-focus drive operates with 1-micron graduations, providing the delicate tactile control needed to step through thick histological sections without overshooting.

• Variable vertical tilt keeps technicians upright and comfortable over long laboratory shifts
• Intelligent brightness memory automatically recalls preset light levels when rotating objectives
• Coaxial 1-micron fine focusing ensures razor-sharp focal plane isolation under 1000x oil

Euromex Five-Year Research System Warranty

Euromex covers the Delphi-X DX.1153-APLi with a comprehensive five-year factory warranty covering optical elements, internal prism linkages, and mechanical stage drives, backed by two years on LED circuitry and digital memory boards. The complete package contains the DX.1153-APLi microscope, five Plan Semi-Apo Fluarex objectives, Abbe swing-out condenser, immersion oil bottle, power cable, white filter cap, dust shield cover, and manual.
