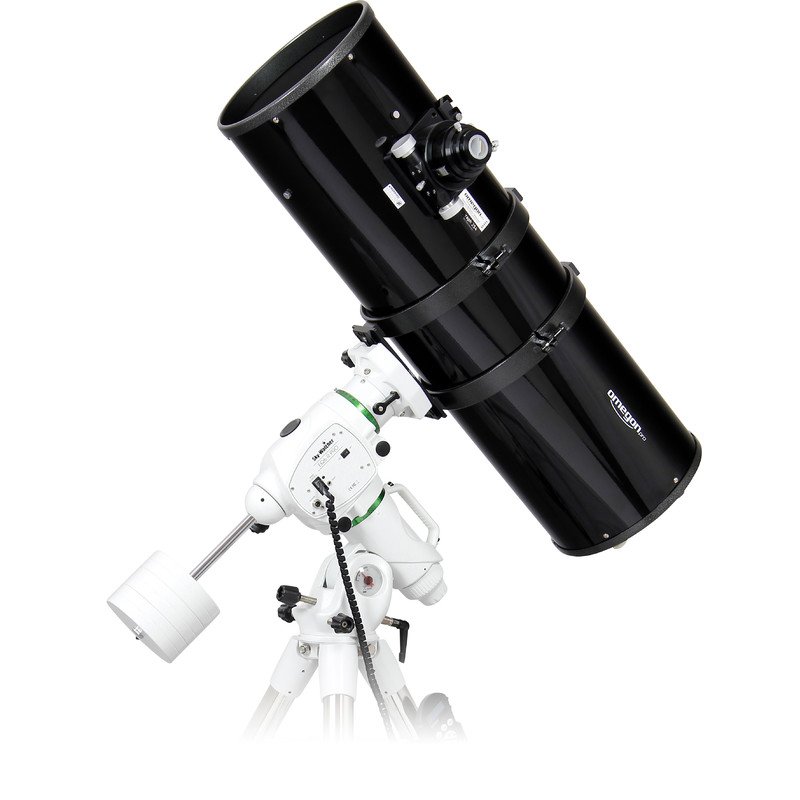

Omegon Pro Astrograph 254/1016 EQ6-R Pro Specs
| Brand | Omegon Pro |
| Full Model Code | Omegon Pro Astrograph 254/1016 Parabolic Newtonian Reflector on Sky-Watcher EQ6-R Pro GoTo Mount |
| Country of Origin | Germany (Designed) / China (Manufactured) |
| Optical Design | Newtonian Reflector (Parabolic Primary Mirror Layout with Planar Secondary Mirror) |
| Aperture | 254 mm (10.00 inches) |
| Focal Length | 1016 mm |
| Focal Ratio | f/4 |
| Optical Coatings | Enhanced Multi-Layer Aluminum Coating Matrix Achieving 94% Enhanced Reflectivity Levels |
| Glass Material | Premium Quartz Primary Mirror Substrate with Near-Zero Thermal Expansion Index |
| Secondary Mirror Obstruction | 88 mm |
| Secondary Mirror Obstruction by Diameter | 34.65% |
| Secondary Mirror Obstruction by Area | 12.00% |
| Resolving Power | 0.46 Arcseconds (Dawes), 0.54 Arcseconds (Rayleigh) |
| Limiting Visual Magnitude | 13.8 |
| Highest Useful Magnification | 508x |
| Lowest Useful Magnification | 36x |
| Optical Tube Material | Roll-Formed Heavy-Gauge Steel Cylinder Shell with Cast Aluminum Cell Framework End Rings |
| Focuser Style & Mechanism | 2-inch Linear Guide Dual-Speed Monorail Focuser with 1:10 Micro-Gear Reduction System |
| Mirror Lock Mechanism | Yes (Equipped with Active Main Base Collimation Lock Bolts and Spring-Loaded Cells) |
| Optical Tube Dimensions | 303 mm x 980 mm |
| Optical Tube Weight | 14.20 kg (31.31 lbs) - OTA Only / 49.00 kg (108.03 lbs) - Combined Total Assembly Weight |
| Mount Attachment Type | Hinged Tube Ring Array Fixed to Losmandy-Style Heavy Dovetail Plate Array |
| Finder Scope Specification | 8x50 High-Aperture Optical Crosshair Finder Scope Assembly Fixed on Base Shoe |
| Included Accessories | 254mm Quartz Newtonian OTA, Sky-Watcher EQ6-R Pro GoTo Mount Head, SynScan Controller, Steel Tripod, Two 5 kg Counterweights, 8x50 Finder Scope, 2-inch Monorail Focuser |
| Standard Warranty | 2-Year Limited Warranty |
| Application | High-resolution deep-sky deep-core imaging targets and faint structure tracking, taking advantage of a large 10-inch light-gathering core on an advanced equatorial tracking assembly. |
