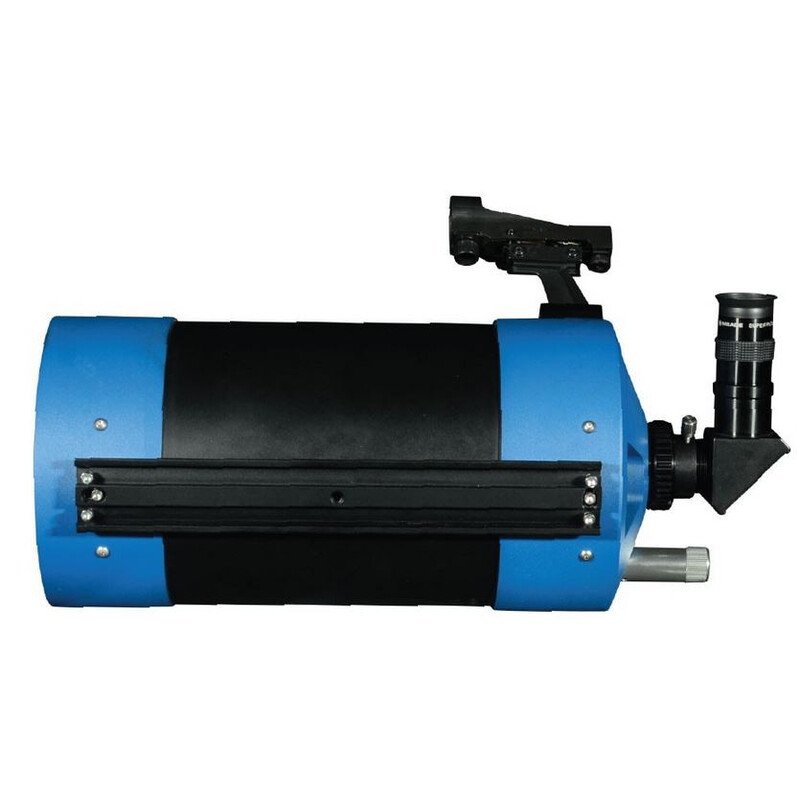

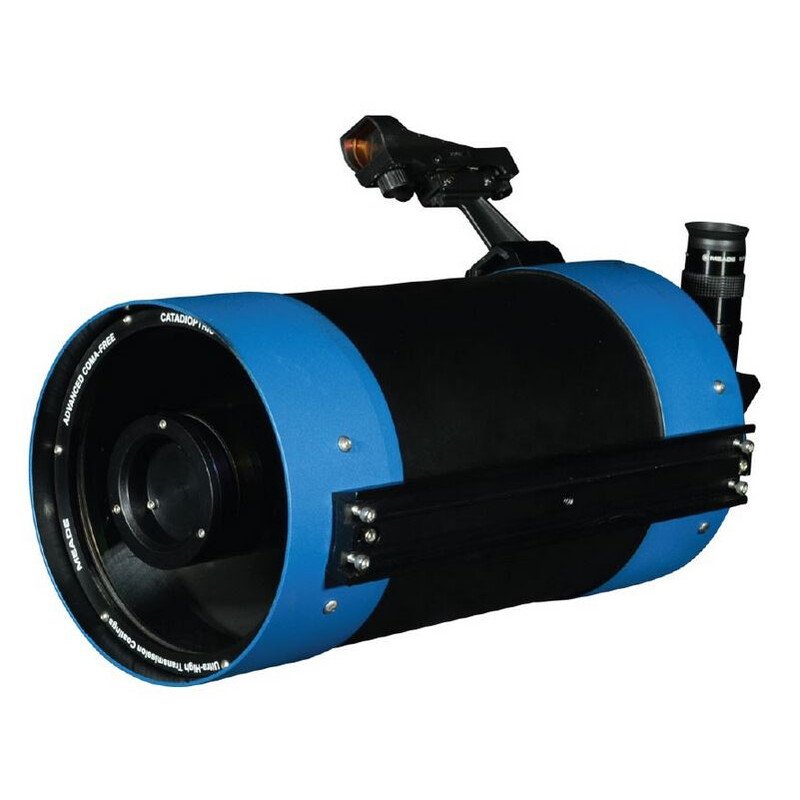

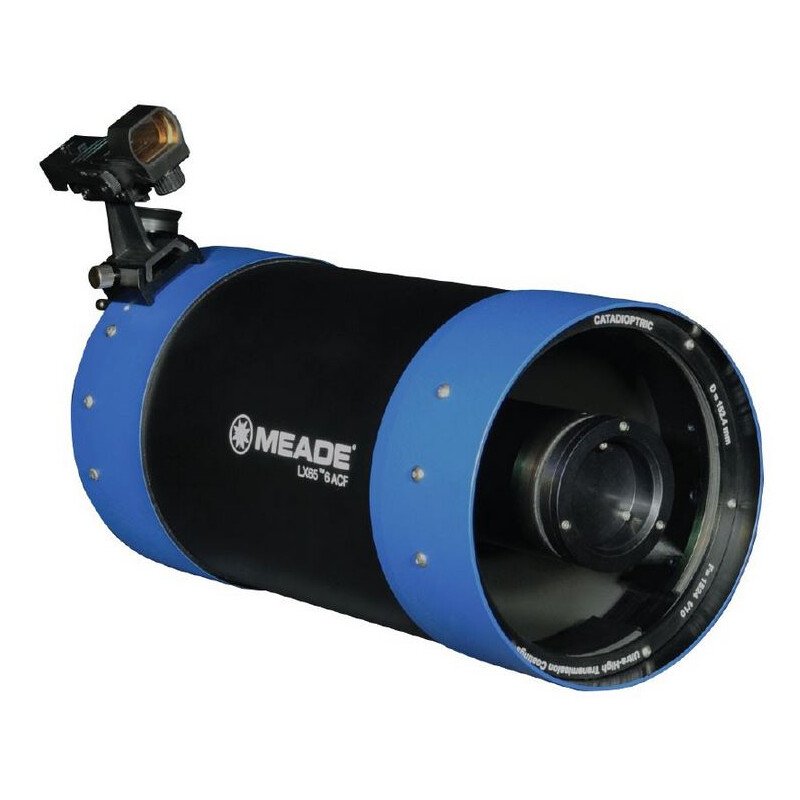

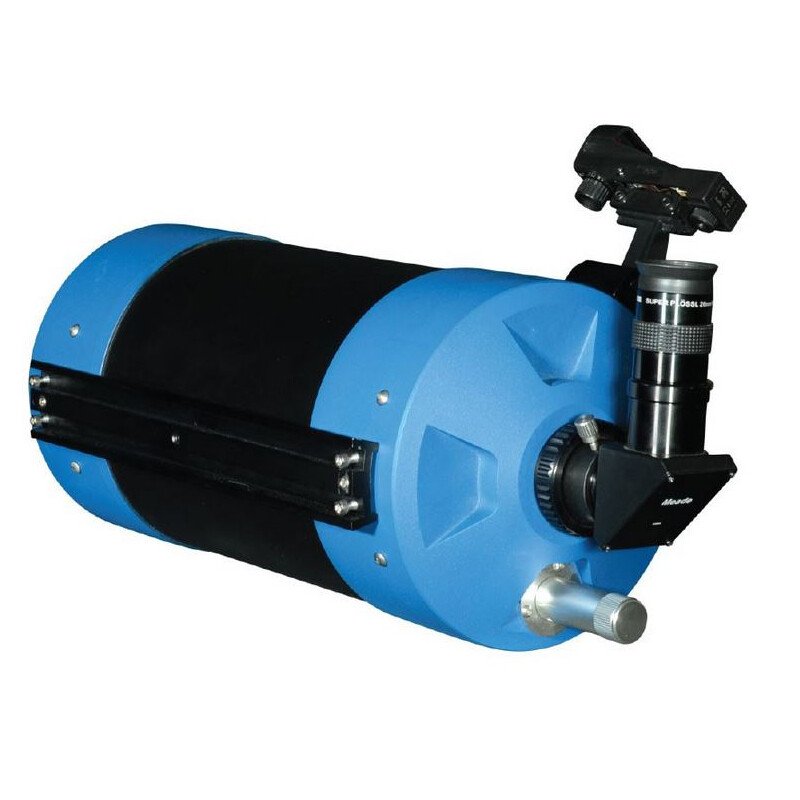

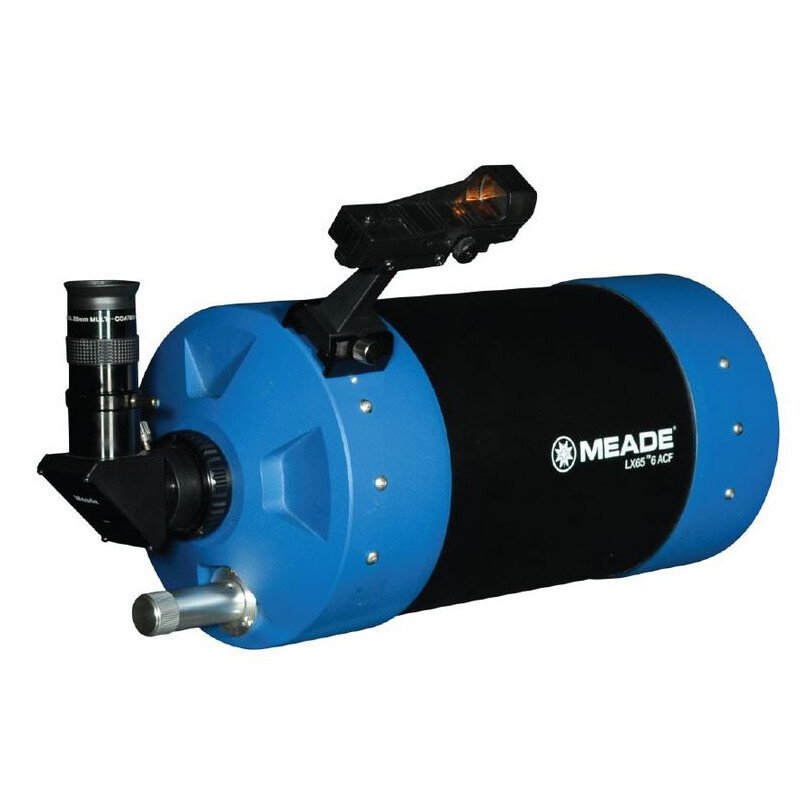

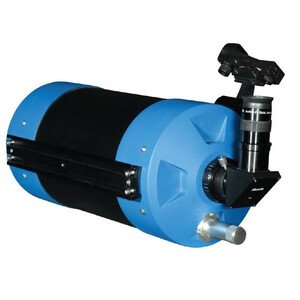

Meade ACF-SC 152/1524 UHTC OTA
Supplied as a standalone optical tube, the Meade ACF-SC 152/1524 UHTC OTA provides a 152mm ACF system with 1524mm focal length and UHTC coatings.
- 152mm aperture provides 0.76-arcsecond resolution
- 1524mm focal length uses f/10 optics
- ACF design uses UHTC coatings
- Vixen dovetail and 8×50 finder included
In Stock
Description
Custom ACF integration begins with the Meade ACF-SC 152/1524 UHTC OTA, a standalone 152 mm Advanced Coma-Free catadioptric optical tube with a 1524 mm focal length and listed f/10 optical ratio. Its UHTC coatings, hyperbolic secondary, aspheric corrector, internal zero-shift focusing, 8×50 finder, 26 mm eyepiece, diagonal, Vixen dovetail, visual back, and aluminum housing provide a complete optical starting point for a separately selected mount.
The OTA is supplied without an equatorial or alt-azimuth mount, tripod, counterweights, or electronic tracking, so the final system must be built around compatible payload and dovetail requirements. The configuration supports planetary, lunar, deep-sky, and supported astrophotography applications, while focus spacing, guiding, camera compatibility, thermal behavior, and tracking performance depend on the selected mount and accessories.
Key Features of Meade ACF-SC 152/1524 UHTC OTA
This standalone Advanced Coma-Free optical tube combines a 152 mm aperture with a 1524 mm focal length, UHTC coatings, hyperbolic secondary, aspheric corrector, internal focusing, 8×50 finder, 26 mm eyepiece, diagonal, visual back, and Vixen-style mounting rail.
- 152 mm Advanced Coma-Free catadioptric system
- 1524 mm focal length with listed f/10 optical ratio
- Ultra-High Transmission Coatings
- Hyperbolic secondary and aspheric corrector
- Internal zero-shift focus mechanism
- 8×50 optical finder with crosshair
- 26 mm Super Plossl eyepiece
- Diagonal, visual back, Vixen rail, and OTA shell
Standalone Deep-Sky and Planetary Use
The supplied application focuses on high-contrast planetary viewing, lunar detail, double stars, deep-sky observation, and supported imaging, while final mount stability, tracking behavior, payload capacity, camera compatibility, focus spacing, alignment, and power requirements depend on the separately selected telescope platform.
Why Choose Meade ACF-SC 152/1524 UHTC OTA
This OTA is relevant when a custom telescope system needs a 6-inch Advanced Coma-Free optical tube with UHTC coatings, long focal length, internal precision focusing, optical finder, eyepiece, diagonal, visual back, Vixen mounting, and a flexible platform for selecting the final mount and tracking system independently.
- ACF optical design with UHTC coatings
- Long 1524 mm focal length for planetary and deep-sky use
- Finder, eyepiece, diagonal, visual back, dovetail, and optical tube included
Meade 1-Year Limited Warranty
The supplied product information lists a 1-year limited warranty for this optical tube assembly, and the applicable US warranty terms, optical coverage, focusing mechanism coverage, accessory coverage, registration requirements, and authorized service process should be confirmed before purchasing a mount, tripod, or imaging system separately.
Meade ACF-SC 152/1524 UHTC OTA Specs
| Brand | Meade Instruments |
| Full Model Code | Meade Advanced Coma-Free 6-inch Schmidt-Cassegrain Optical Tube Assembly with UHTC (217020) |
| Country of Origin | Mexico |
| Optical Design | Advanced Coma-Free (ACF) Catadioptric Catseye Structure (Hyperbolic Secondary / Aspheric Corrector) |
| Aperture | 152 mm (5.98 inches) |
| Focal Length | 1524 mm |
| Focal Ratio | f/10 |
| Optical Coatings | Ultra-High Transmission Coatings (UHTC) Matrix for Enhanced Light Throughput |
| Glass Material | Premium Borosilicate Primary Mirror Substrate with Water-White Glass Corrector Plate |
| Secondary Mirror Obstruction | 56 mm |
| Secondary Mirror Obstruction by Diameter | 36.8% |
| Secondary Mirror Obstruction by Area | 13.54% |
| Resolving Power | 0.76 Arcseconds (Dawes), 0.91 Arcseconds (Rayleigh) |
| Limiting Visual Magnitude | 13.4 |
| Highest Useful Magnification | 300x |
| Lowest Useful Magnification | 22x |
| Optical Tube Material | Powder-Coated Aluminum Cylindrical Shell with Machined Metal Cast Cell Rings |
| Focuser Style & Mechanism | Internal Primary Mirror Focusing Mechanism with Zero-Shift Precision Slide Baffle Track |
| Mirror Lock Mechanism | No |
| Optical Tube Dimensions | 180 mm x 410 mm |
| Optical Tube Weight | 4.10 kg (9.04 lbs) |
| Mount Attachment Type | Integrated Vixen-Style Dovetail Mounting Rail Attachment Base |
| Finder Scope Specification | 8x50 Achromatic Optical Finder Scope with Crosshair Layout and Dual-Screw Alignment Bracket |
| Included Accessories | 6-inch ACF OTA, UHTC Glass Matrix, Vixen Dovetail Bar, 8x50 Finder Scope, 1.25-inch Eyepiece Holder Back, 90-Degree Mirror Diagonal (1.25-inch), Super Plossl 26mm Eyepiece (59x) |
| Standard Warranty | 1-Year Limited Warranty |
| Application | Custom integration with tracking platforms for clear deep-sky surveys, leveraging the proprietary hyperbolic secondary optical design to fully eliminate coma across the field of view. |
