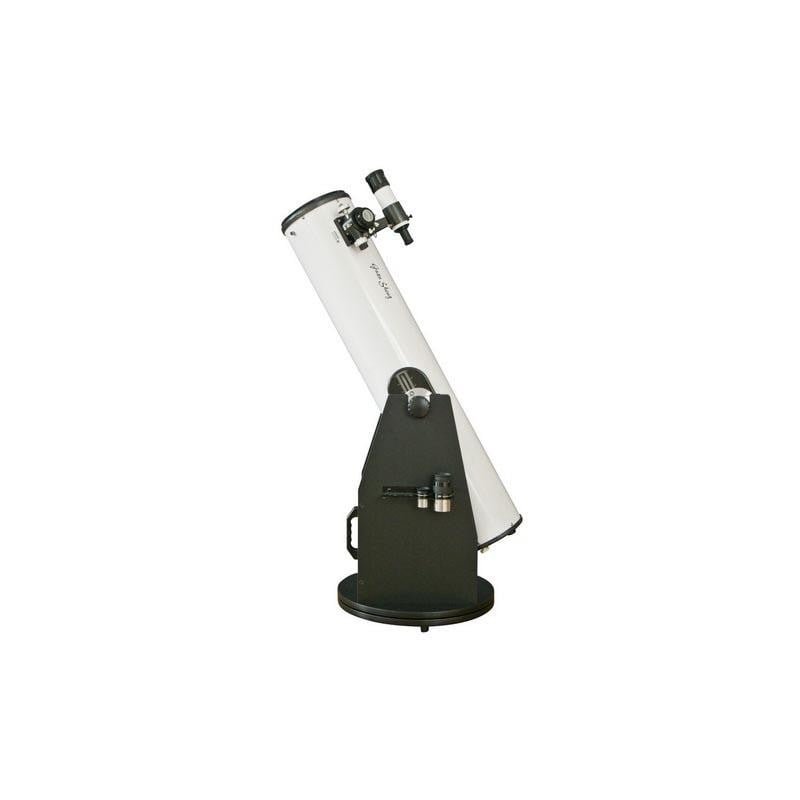

GSO Dobson N 200/1200 DOB Deluxe Version
Built around a 200mm parabolic mirror, the GSO Dobson N 200/1200 DOB Deluxe Version provides a 1200mm focal length, dual-speed Crayford focuser, cooling fan, and deluxe rocker box.
- 200mm parabolic mirror provides 0.58-arcsecond resolution
- 1200mm focal length uses f/6 optics
- 2.0-inch focuser provides 10:1 adjustment
- 30mm Erfle eyepiece provides listed 40x
- 9mm eyepiece provides listed 133x
- Cooling fan and roller bearings included
In Stock
Description
Deep-sky capability and refined manual control define the GSO Dobson N 200/1200 DOB Deluxe Version, an 8-inch parabolic Newtonian reflector with a 1200 mm focal length and listed f/6 optical ratio. Its deluxe wooden rocker box uses steel roller needle azimuth bearings and adjustable CNC altitude clutches, while the 2-inch dual-speed Crayford focuser, 30 mm Erfle eyepiece, 9 mm Super Plossl, cooling fan, 8×50 finder, tripod, and accessory tray provide a substantial visual observing system.
The BK7 parabolic primary mirror uses enhanced aluminum reflectivity with quartz overcoat, while the 10:1 micro-gear focuser supports precise adjustment with 2-inch and 1.25-inch accessories. The manual rocker base requires no electronic power or alignment, and the active primary cooling fan can be used during preparation to help the mirror approach ambient conditions before higher-magnification observation.
Key Features of GSO Dobson N 200/1200 DOB Deluxe Version
This deluxe Dobsonian combines a 200 mm parabolic Newtonian mirror with a 1200 mm focal length, f/6 optical ratio, enhanced aluminum coating, dual-speed Crayford focuser, 10:1 reduction, roller azimuth bearings, CNC altitude clutches, cooling fan, 8×50 finder, and wide-field eyepiece.
- 200 mm parabolic Newtonian reflector
- 1200 mm focal length with listed f/6 optical ratio
- Deluxe wooden Dobsonian rocker box
- Enhanced aluminum and quartz protective coating
- 2-inch dual-speed Crayford focuser
- 10:1 micro-gear reduction and brass compression rings
- 8×50 optical finder and 30 mm Erfle eyepiece
- 9 mm eyepiece, cooling fan, tripod, and accessory tray
Manual Deep-Sky and Planetary Observation
The supplied application focuses on galaxies, nebulae, star clusters, lunar terrain, and planetary surfaces, with the 200 mm aperture providing the listed deep-sky format while the f/6 focal ratio, dual-speed focuser, adjustable altitude clutch, and cooling fan support more controlled manual observation at different magnifications.
Why Choose GSO Dobson N 200/1200 DOB Deluxe Version
The Deluxe 8-inch Dobsonian is relevant when a manual telescope needs more aperture and mechanical refinement than a basic rocker box, with roller azimuth bearings, adjustable altitude clutches, 10:1 focusing, active cooling, 2-inch accessory support, 8×50 finding, and eyepieces covering wide and higher-magnification viewing.
- 200 mm aperture for the listed deep-sky configuration
- Dual-speed Crayford focuser with 10:1 adjustment
- Cooling fan, 8×50 finder, two eyepieces, tripod, and deluxe rocker base included
GSO 2-Year Limited Warranty
The supplied product information lists a 2-year limited warranty for this telescope, and the applicable US or regional warranty terms, mirror coverage, focuser coverage, cooling-fan coverage, rocker-box coverage, registration requirements, and authorized service process should be confirmed before purchase because GSO product support varies by distributor and market.
GSO Dobson N 200/1200 DOB Deluxe Version Specs
| Brand | GSO (Guan Sheng Optical) |
| Full Model Code | GSO 8-inch f/6 Deluxe Dobsonian Telescope (GS680-Deluxe) |
| Country of Origin | Taiwan |
| Optical Design | Newtonian Dobsonian (Parabolic Primary Mirror) |
| Aperture | 200 mm (7.87 inches) |
| Focal Length | 1200 mm |
| Focal Ratio | f/6 |
| Optical Coatings | Enhanced 94% Aluminum Reflectivity Coating Matrix with Quartz Overcoat Protection |
| Glass Material | Premium Parabolic BK7 Structural Core Glass |
| Secondary Mirror Obstruction | 50 mm |
| Secondary Mirror Obstruction by Diameter | 25% |
| Secondary Mirror Obstruction by Area | 6.25% |
| Resolving Power | 0.58 Arcseconds (Dawes), 0.69 Arcseconds (Rayleigh) |
| Limiting Visual Magnitude | 14.0 |
| Highest Useful Magnification | 400x |
| Lowest Useful Magnification | 29x |
| Optical Tube Material | Powder-Coated Rolled Steel Cylinder Structure |

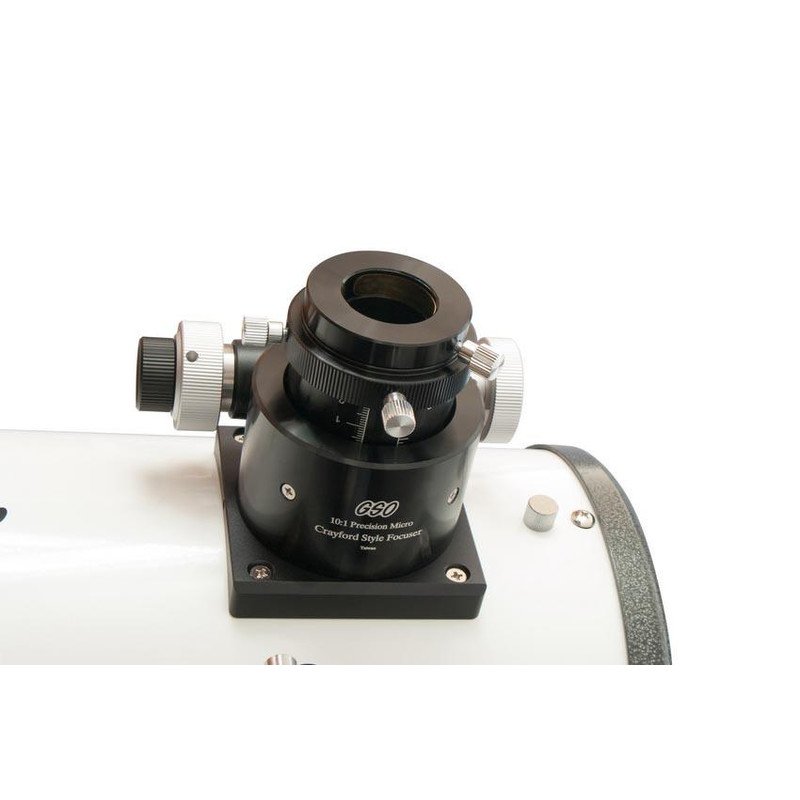

| Focuser Style & Mechanism | 2.0-inch Dual-Speed Crayford Focuser with 10:1 Micro-Gear Reduction System and Brass Compression Rings |
| Mirror Lock Mechanism | No (Equipped with Primary Active Battery Cooling Fan Compartment) |
| Optical Tube Dimensions | 230 mm x 1150 mm |
| Optical Tube Weight | 9.52 kg (21.0 lbs) |
| Mount Attachment Type | Deluxe Wooden Rocker Box utilizing Steel Roller Needle Azimuth Bearings and Adjustable CNC Altitude Clutches |
| Finder Scope Specification | 8x50 Achromatic Optical Finder Scope with Quick-Release Base |
| Included Accessories | 10:1 Dual-Speed Focuser, Erfle 30mm Wide-Field Eyepiece (2-inch / 40x), Super Plossl 9mm Eyepiece (1.25-inch / 133x), Primary Mirror Cooling Fan, 35mm Extension Tube |
| Standard Warranty | 2-Year Limited Warranty |
| Application | Advanced deep-sky exploration and immediate structural nebular charting, pairing smooth industrial roller tracks with precision micro-focusers to handle bulky astronomical eyepiece profiles gracefully. |
